What is a DTF printer machine?

What Is A DTF Printer Machine

DTF Printing, also known as Direct To Film Printing, works by hot-pressing transfer pieces onto a variety of garments (and other substrates). When you have this kind of machine, you can print on any kind of fabric, dark or light. You can have more varieties in your product line. Saving on labor costs, one employee can operate the machine.

Applicable scope: T-shirt, pants, bags, leather, advertising shirt customization, cultural shirt customization, fashion children’s wear, fashion women’s clothing and so on.

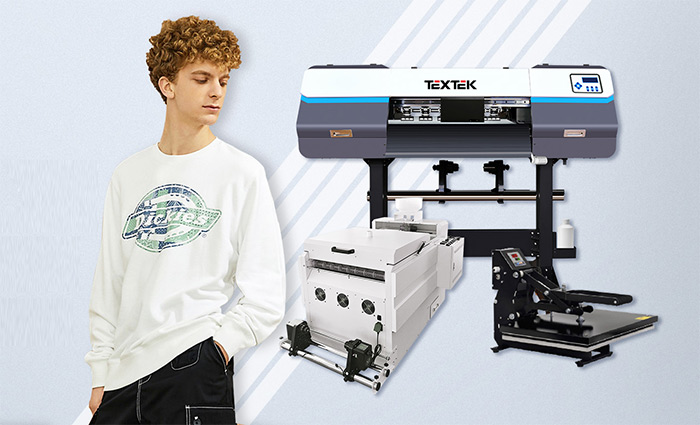

How much does a DTF printer cost?

The price of a DTF printer is about 3000-7000 US dollars. At present, most dtf printers on the market use Epson print heads, and the price will vary depending on the configuration. As for the cost, it mainly refers to the loss of ink and print heads, air permeability and color fastness. Personally, I think the choice of ink is more important than the machine, because the quality of the ink determines the color.

A3 DTF Printer

A3 DTF Printer

Printhead: 2*EPSON XP600 Printing Speed: 4.5sqm/h Print Width: 30cm(12 inch) Ink: CMYK+W Pigment Ink Ink Color: 6 Color Printing RIP Software: Maintop, ...
Read More »
A3 Pro DTF Printer

A3 Pro DTF Printer

Printhead: 2*EPSON XP600 Printing Speed: 4.5sqm/h Print Width: 30cm(12 inch) Ink: 4C+W or 6C+W Pigment Ink Ink Color: 6 Color Printing RIP ...
Read More »
60cm DTF Printer

60cm DTF Printer

Printhead: 2/4*Epson I3200-A1 Printing Speed: 12-15sqm/h Print Width: 60cm(24 inch) Ink: Pigment Ink Ink Color: CMYK+W Printing RIP Software: Maintop, Photoprint Specification ...
Read More »
65cm DTF Printer

65cm DTF Printer

Printhead: 2*EPSON I3200-A1 Printing Speed: 15sqm/h Print Width: 65cm(24 inch) Ink: CMYK+W Pigment Ink Ink Color: 4 Color Printing RIP Software: Maintop, ...
Read More »
70cm DTF Printer

70cm DTF Printer

Printhead: 2*EPSON I3200-A1 Printing Speed: 12-15sqm/h Print Width: 70cm(24 inch) Ink: CMYK+W Pigment Ink Ink Color: 4 Color Printing RIP Software: Maintop, ...
Read More »

How DTF Printer Works?

First, implementing printer DTF in your printing business does not require a significant investment. Whether you’re new to printing or looking to adjust your DTF printing to expand your business, it’s worth your time to take a closer look at these printers.

Application of DTF Printer
Application of DTF Printer

Film of a direct film printer

DTF printers use PET films because these are different from those used in screen printing. PET film is about 0.75 mm thick, giving it better transfer characteristics. These films are also marketed as DTF transfer films.

You can find them as cut pieces for small scale use or as reels for large commercial Settings. There are two classifications of PET films based on temperature. These are cold and hot stripping films.

Software for DTF printers

Software is an integral part of a DTF printer. This is because the software affects color performance, printing characteristics of the ink, and the final printing performance. For DTF printing, you will need special RIP software to handle your white and CMYK colors.

This is crucial because the software controls color analysis, drop size, amount of ink and several key factors that contribute to print quality.

Hot-Melt Adhesive Powder

Direct film printing powder is a white granular product that can be used as an adhesive material. This helps bind the color pigments in the printer to the surface you are printing. However, this STF hot melt adhesive comes in several grades in microns.

DTF printer ink

The inks used in DTF printers are unique pigments designed in cyan, yellow, magenta, white and black. White ink forms the basis of the print, while colored pigments print the design on the film.

Automatic Powder Shaker

This direct film printer component is common in commercial applications (DTF printers apply powder) in a uniform manner. In addition, the shaker can remove excess powder.

Curing oven

This is a small industrial oven used to melt the printer’s hot melt powder and then place it on the transfer film. Alternatively, you can use a hot press to achieve this function. However, it helps if you use a hot press in contactless mode.

Heat Press Machine

This device helps transfer the printed image from your film to the desired surface or fabric. You can also use this machine to melt powder on your DTF film.

Direct to Film printing process

DTF printing process
  • Print on Film: Instead of using ordinary paper, you should use PET film. First, you print the entire image on PET film, on a white background.
  • Spread the Powder: This step is to pour hot melt powder onto the film. When printing a wet image, you should make sure that all the force is evenly distributed to the surface.
  • Melt the powder: Literally, momentum is melted in this step. For best results, you can melt the powder as requested by the manufacturer. The heating process usually lasts two to five minutes and the temperature is about 160 to 170 degrees Celsius.
  • Pre-press the Fabric: Prepressing means prepressing the fabric before transferring the image. The texture is pressed in a hot press for 2 to 5 seconds in order to dehumidify the fabric.
  • Heat transfer: This is the core step of DTF printing, where PET films with images and melted powder are placed on the fabric. The film adheres firmly to the fabric for about 15 to 20 seconds in a temperature range of 160 to 170 degrees Celsius.
  • Cold Peel: What’s more, you need to make sure the film is cooled to room temperature before you pull it off.
  • Post-pressing: This is an alternative method, but you can get the best results, such as water washing and rubbing fastness. In this step, the final fabric with the transfer design is pressed in a hot press for about 10 to 15 seconds.

Printing knowledge

Types and characteristics of textile fibres
Textile fibre (in the field of the textile industry) is the name given to the set of filaments that can be used to form yarns, which will later be transformed into fabrics by means of the spinning technique, or other physical or chemical procedures. In conclusion, the textile fibre will be the raw material that will make up the fabrics.Textile fibres must meet the required qualities to be processed and converted into fabrics, and these are: length, colour, brightness, fineness, elasticity, resistance, elongation, resistance to heat, solvents, light, chemical reagents, among many others. Textile fibres are naturally short in length, ...
Types of T-shirts Printing Methods
What types of textile printing are there? The most popular processes are screen printing, embroidery, transfer and textile vinyl. They all have different uses, depending on the number of T-shirts to be printed and the model to be chosen. Find out the importance of each one and which one is best suited to your organisation. Types of t-shirt printing Screen printing? It is one of the most commonly used printing techniques on fabric to print T-shirts. The mechanism consists of a system of plates with each existing colour in the original design to be printed. These meshes or plates will ...
Things you should know about DTF technology
Direct-to-film printing is a unique printing technology that involves printing designs onto special films for transfer onto garments. DTF printing is a heat transfer process that has the ability to last as long as traditional screen printing. Here are five things you need to know about DTF technology before implementing it in your business. Quality equipment is essential If you own a printing business, you already know that the quality of your work is only as good as the quality of your printers and inks. This is even more true when it comes to DTF printing. Like other heat transfer ...
DTF Printing Vs Screen Printing
Simply put, if you're looking for a printer that can deliver projects in bulk, look to DTF printing. It's fast, efficient and has few processes to complete. However, if you need quality prints without the need for personalisation, screen printing is sufficient. To get a better idea of which printing method is best, read on for more contrasts between the two. This text also includes the pros and cons of both methods: What is DTF printing? This is a flexible, state-of-the-art printing technology available on the market. It involves the use of special films (PET) on which you print your ...

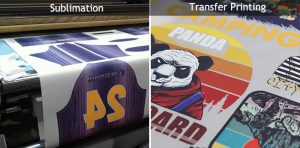

Which is better sublimation vs Transfer printing?
Some people still confuse these two terms and generally assume them to be the same. However, they are not. Sublimation prints and transfer prints have differences in performance. Sublimation is a technique used to print fabrics that contain polyester, unlike transfer, a technique that consists of printing cotton fabrics, either light or dark colours. Next, we detail the processes: Sublimation: Sublimation, also called thermofixation, is a process in which the ink is printed on the fabric by means of heat, passing from a solid state to a gaseous state without passing through the liquid. For this type of printing it ...

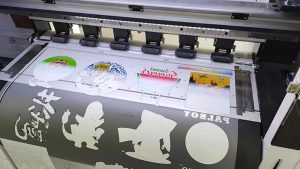

DTF Printing Technology
