- Printhead: 2*EPSON I3200-A1
- Printing Speed: 12-15sqm/h
- Print Width: 70cm(24 inch)
- Ink: CMYK+W Pigment Ink
- Ink Color: 4 Color Printing
- RIP Software: Maintop, Photoprint
Specification

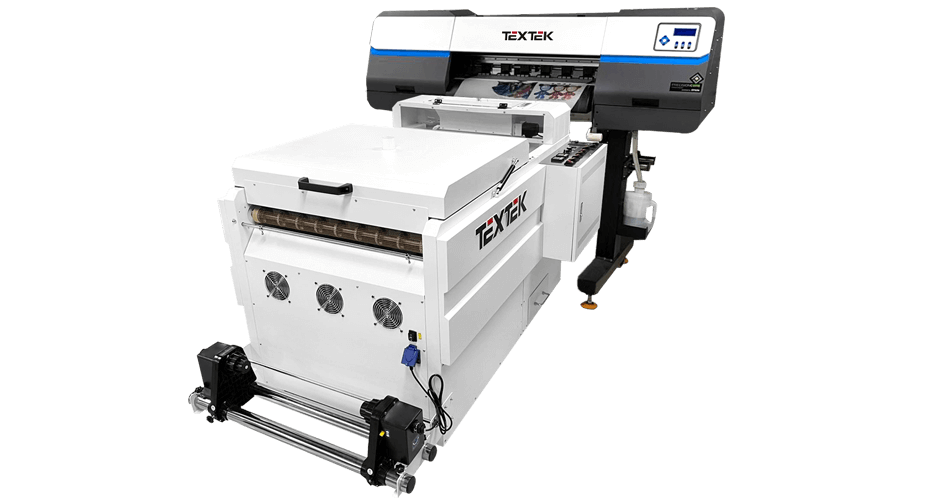

| Printer Model | FD70 DTF Printer,H650 Shaking Powder Machine |
| Printhead | 2pcs Epson I3200-A1 3200 DPI |
| Printing Speed Tested on linear print without feather |
6pass 12-15㎡/h 8pass 9-11㎡/h |
| Printing Width | 700mm(24 inch) |
| Ink | CMYK+W Pigment Ink |
| Print Media | PET Film |
| Heating System | Front and Back Independent Heater |
| Transmission Interface | Gigabit LAN |
| RIP Software | Maintop, Photoprint |
| Image Format | BMP, JPG, TIFF, EPS, PDF… |
| Computer System | Windows XP/Win7/Win8/Win10 |
| Power Supply | 220V, 50/60 HZ, 10A 4500W |
| Work Environment | TEMP.:10℃-38℃ Humidity:40%-70% |
| Machine Size/Weight | 1690*480*235mm 150KG,1570*1180*1130mm, 250KG |
Feature of 70cm DTF Printer
1. Not limited by fabrics, lower power consumption and stronger performance.

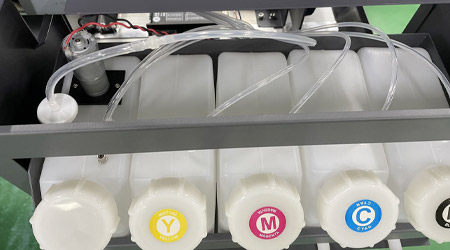

2. White ink circulation system prevents settling and clogging nozzle.
3. Support CMYK+W ink printing, bright color, better printing effect.
4. U.S.A rubber press roller, reduce static electricity and ensure even paper feeding, improve printing efficiency.

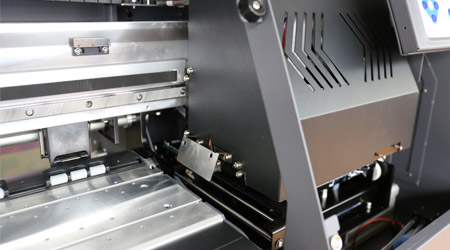

5. Adjustable liftable capping station, seals better with carriage and protects Epson I3200-A1 printhead.
6. Anti-collision device on carriage, effectively avoid hitting obstacles and damaging printhead.
